PRODUCT
BK-CDS-1000V EV PACK / ESS Cluster Tester China
BK-CDS-1000V
share

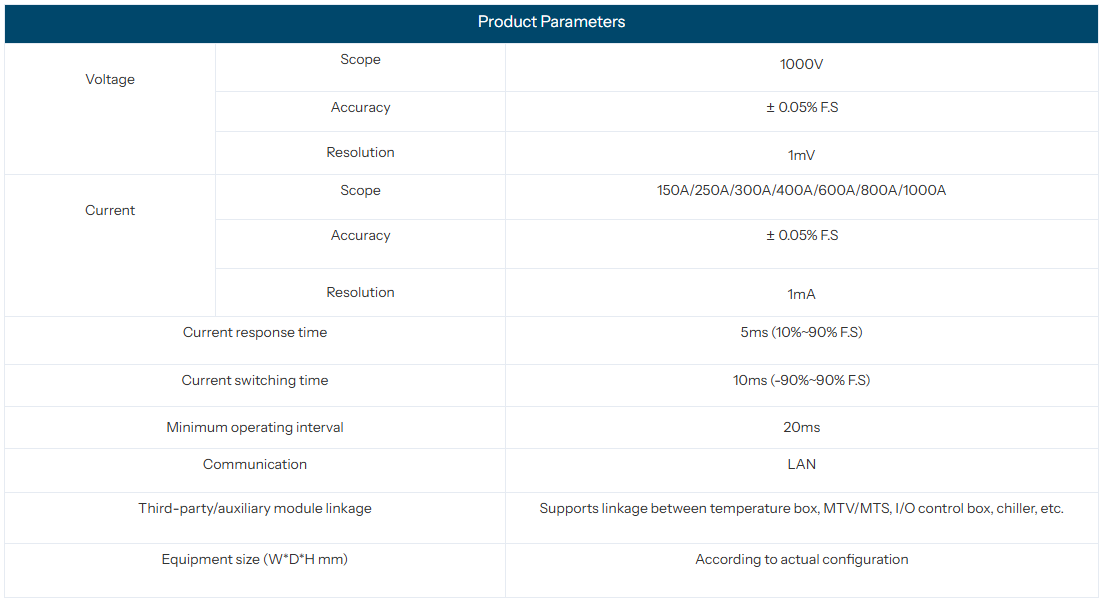

Voltage Range 1000V
Current Range 150A/250A/300A/400A/600A/800A/1000A
Accuracy ± 0.05% F.S
Current response time 5ms (10%~90% F.S)
Current switching time 10ms (-90%~90% F.S)
Equipment size According to actual configuration

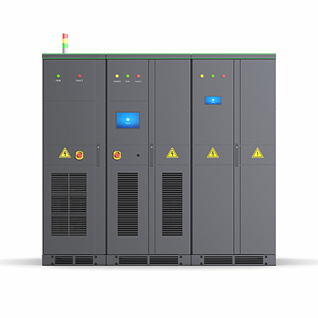

BK-CDS-1000V EV PACK / ESS Cluster Tester China
BK-CDS-1000V 150A/250A/300A/400A/600A/800A/1000A
Application
Bluekey high voltage high current battery test system adopts advanced instrumentation technology and power electronics technology to develop energy feedback type testing equipment, which is suitable for new energy vehicles, energy storage, battery packs and other lithium or lead-acid battery pack testing and quality control.
Testing Functions
■Conditional Pulse Test
■Matrix Test
■Charge Retention Capability
■Dynamic & Static SOC Test
■Cycle Life Test
■Temperature Characteristics Test
■Capacity Test
■DCIR Test
